UV DTF printer:
UV-420

CMYK+Lc Lm,better color performance
Get Quote Now

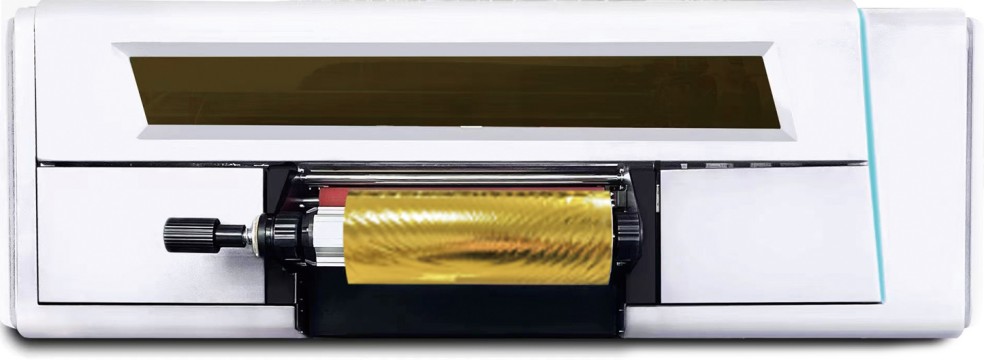

UV DTF printer: UV-420
Product description

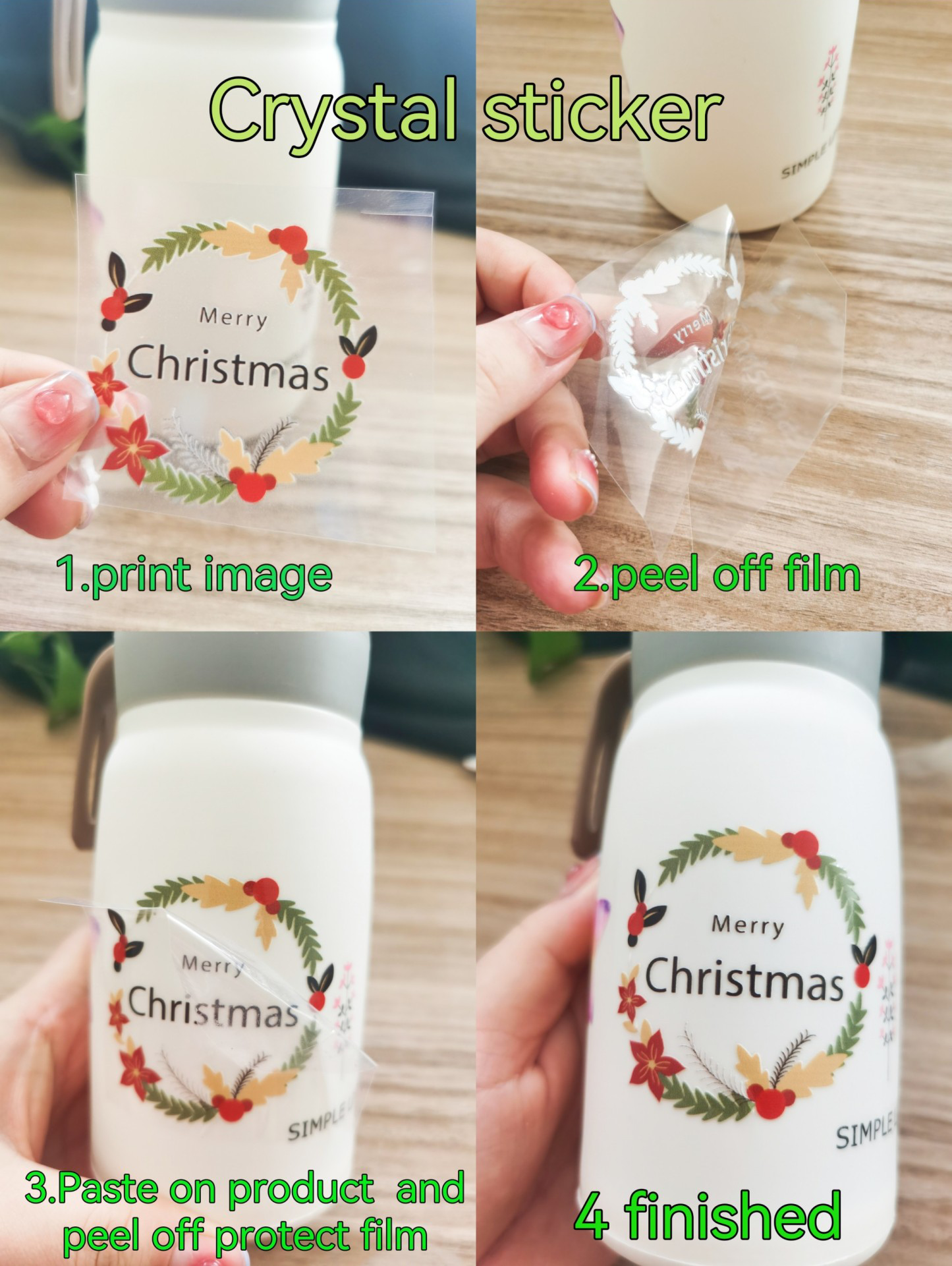

Crystal label is also called UV transfer sticker, it is in the special release material printing required text and text, then transfer film, and finally use the film to take the pattern attached to the surface of the final product of a surface graphics production process.
Small body,130mm*870m*480mm, desktop printing and more space saving
Trolley ink stack, automatic lifting ink stack, effectively protect the printing headthe use of negative pressure ink sac, effectively ensure the ink flow, printing ink
CMYK+Lc Lm,better color performance
Direct injection of glue ,lower cost of consumables,Partial gold stamping,very good
White ink mixing system,more stable ink output
All kinds of gold and silver stickers are printed, the effect is very beautiful.
AB film printing,Two printing methods can be switched at will.
Specification
Model UV-420
Print width 420mm
Printhead TX800*4pcs
Board honson
Software PP
Printing Accuracy 1440dpi
Printing Color CMYK Lc Lm+W+Glue+Varnish
Ink UV ink
Print speed 4-6sqm/h
Curing method LED UV water cooling
Operating system WIN7/10 64bit
Operating environment Tem 20℃-28℃,Humidity 40-60%
Power AC220/110V. 50HZ'60HZ
Graphic format  Tiff,Jpg,Eps,Pdf,Png,AI,Psd
Dimensions(L*W*H) 1300*870*480mm
Weight(NW) 130kg
Weight(GW) 190kg
Multiple Applications of UV Printer
Customize anything! More than Just Leather,Metal,Plastic,Paper,Wood,Glass,Ceramic etc... Without limilts.
Suitable for almost all types of stickers, logos, labels etc.. Applicable to various industries, simple and easy!
