Consumable: I3200-A1 Printhead
Product Description
The Epson I3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for water based inks. It is unlocked.Precision Core Technology, Support for grey-scale, High resolution, High durability.

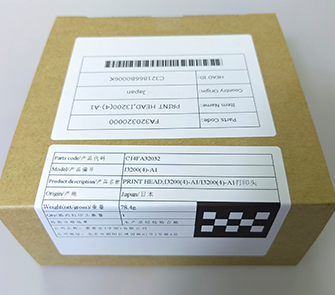

I3200-A1 Printhead-Overall packaging
I3200-A1 Printhead-Overall packaging
I3200-A1 Printhead-Print head box
I3200-A1 Printhead-Print head box
I3200-A1 Printhead -Unpacking
I3200-A1 Printhead -Unpacking
Displayed together with the packaging box
Displayed together with the packaging box
Displayed together with the printhead box
Displayed together with the printhead box
Print head front display
Print head front display
Print head side display
Print head side display
Print head back display
Print head back display
Specification
Number
Product Name EPSON I3200A1
Model C14FA32032
Ink AQ
Dimensions(mm x mm x mm) 69.1×59.4×35.6
 Weight(g) 82
Total Number Of  Nozzles(pcs) 3200
Distance Between Mouths(inch) 1/300 (line)
Number Of  Nozzle Rows 8
Maximum Usable Ink Color 4
 Nozzle Resolution 300npi/1line,600npi/2 line
Effective Print Width(mm) 33.8
Spray Frequency(kHz) 43.2(Single),21.6(Multi)
Drop Volume PL(pl) 3.8-6-12(9.4)
Corresponding Ink Viscosity(mPa·s) 3~4
