F1080-xp600 printhead
XP600

Consumable:
F1080-xp600 printhead

Get Quote Now
Consumable: F1080-xp600 printhead
Product Description
The Epson xp600 printhead has 6 ink paths. The number of head for the CMYK ink paths is 180 for each color, and 360 heads for  LC ,LM ink paths. The entire xp600 printhead has a total of
1080 nozzles . It can print a minimum of 3.5PL drops. The number of head on the XP600 printhead is 360 fewer than DX5/DX7(1440 nozzles).
Strong adhesion, easy separation.Easy to use and easy to operate.Waterproof and wear-resistant, a wide range of applications
Product advantages

6-color ink tube, achieving a 6-color spray

The nozzle surface is smooth and free from wear

Independent QR code, genuine guarantee

Double layer packaging for better protection of print heads
F1080-xp600 printhead-Packaging box display
F1080-xp600 printhead-Packaging box display
Unpacking - Print Head Box Display
Unpacking - Print Head Box Display
Unpacking - Display the number of nozzle columns
Unpacking - Display the number of nozzle columns
F1080-xp600 printhead-Overall unpacking
F1080-xp600 printhead-Overall unpacking

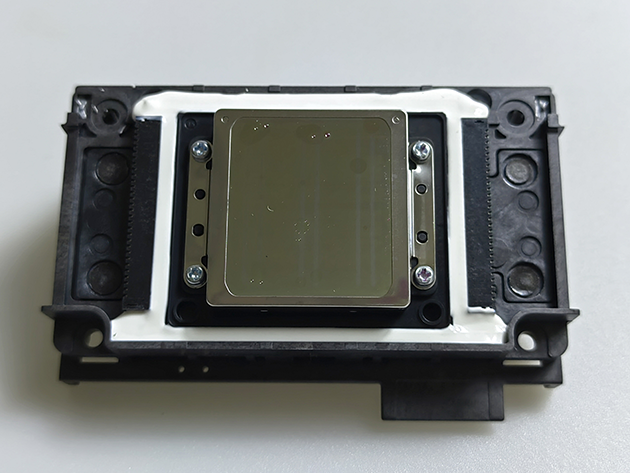

F1080-xp600 printhead-front and back
F1080-xp600 printhead-front and back
F1080-xp600 printhead- product display
F1080-xp600 printhead- product display
New XP600 Print Head-Packaging display
New XP600 Print Head-Packaging display
New XP600 Print Head-Overall display
New XP600 Print Head-Overall display
Specification
Model xp600
Ink AQ /UV/Eco-solvent
Dimensions(mm x mm x mm) 84.9×57.2×42.6
Weight(g) 60
Total Number Of Nozzles(pcs) 1080
Distance Between Mouths(inch) 180
Number Of Nozzle Rows 6
Maximum Usable Ink Color 6colour(180dpi/colour)
 Nozzle Resolution 180npi1line, 360dpi/2line
Effective Print Width(mm) 25.4
Spray Frequency(kHz) 43(Single),14.4(Multi)
Drop Volume PL(pl) 4.5-9-20-40
Corresponding Ink Viscosity(mPa·s) 3~5
Use Model XP6005/XP6001/XP6000/XP8600
